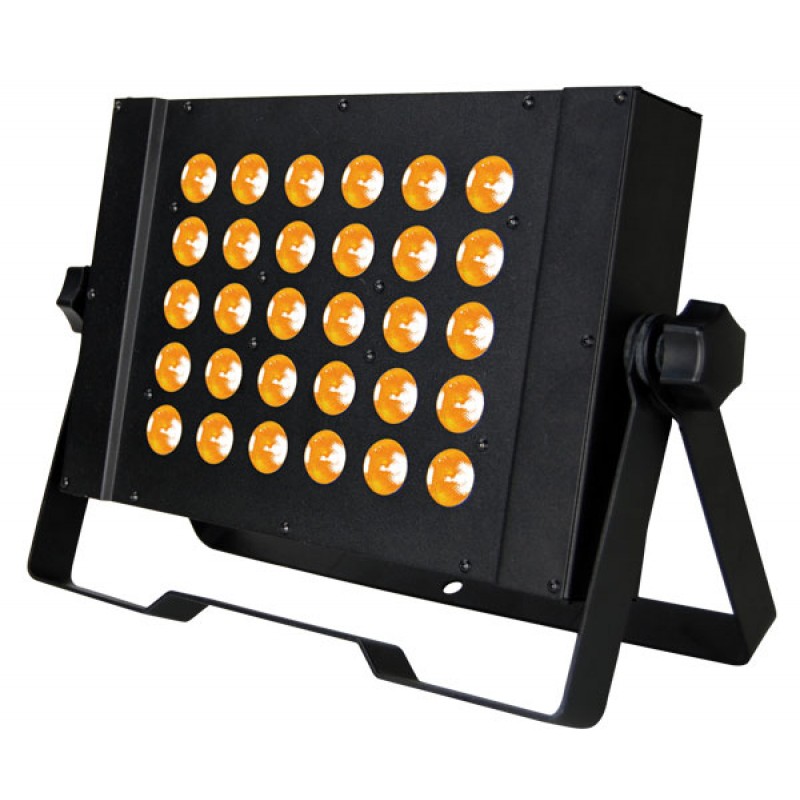

MULTIFORM VersoPlan HT3030
- Rp.0
- Brands Multiform Lighting
- Product Code: MULTIFORM VersoPlan HT3030
- Availability: In Stock
• The VersoPlan © HT3030 is the larger sibling of the VersoPlan © HT3018 and likewise a high power RGB color-mixing LED fixture, based on TriLED technology and a new approach to cooling.• Exposing the oversized rear-panel heatsink directly to a stream of convecting air allows this fixture to achieve outstanding LED lifetime while operating without any noise of a fan.• This results ..
Tags: Multiform Lighting, Lighting Systems, Lighting Effects,
• The VersoPlan © HT3030 is the larger sibling of the VersoPlan ©
HT3018 and likewise a high power RGB color-mixing LED fixture, based on
TriLED technology and a new approach to cooling.
• Exposing the
oversized rear-panel heatsink directly to a stream of convecting air
allows this fixture to achieve outstanding LED lifetime while operating
without any noise of a fan.
• This results in a fixture of
outstanding power density and reliability in a very compact case –
perfect for installations with limited space or rental operations where
transport volume counts.
FEATURES
• 30x3W MulTriCell LEDs (30x1W-R, 30x1W-G, 30x1W-B)
• Precision PMMA collimator lenses, 25° dispersion angle
• Output 4250lm
• CDA™ Current Drive Array Technology for efficient constant LED current regulation
• 3 buttons + 3-digit LED display user interface
• 3 Operation modes: Static Color – Auto – DMX
• Sound-to-Light (S2L) for stand-alone operation
• Switching and fading presets for stand-alone operation
• Brightness and pattern speed adjustable in stand-alone operation
• DMX operation in 3- 4- and 5-Channel configuration
• IR sensor for optional IR remote control (not included)
• PDM modulation (camera compliant)
• Switch-mode power supply 100-250VAC
• Noise-free convection cooling (no fan)
• All-metal cabinet design
• Dual bracket
• Rear-side DMX connections and AC Input-Output IEC connections
• IP20 rated
DATA
- Panels/Output: 1 panel, 4250 lm
- LEDs per panel: 30x3W RGB MulTriCell
- Arrangement: 30xRed, 30xGreen, 30xBlue
- Optics: Secondary, 25 degrees
- DIM Modulation: PDM
- DMX Control: 3/4/5 Channels
- IP Rating: 20 (indoor)
- AC requirement: 100-250 V~ 50-60Hz
- Max. Power: 95W
- Dimension 319.0×210.0×73.0mm WxHxD (without bracket)
- Weight: 4.6kg
